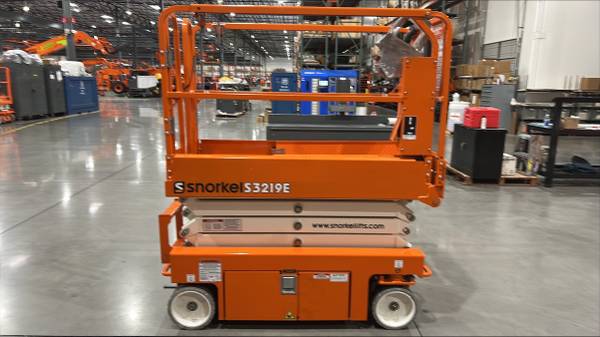

2016 Snorkel S3219E Rebuilt Scissor with Lithium-Ion Batteries 002089 - $8,095 (Henderson)

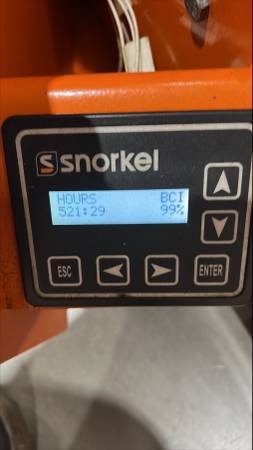

engine hours (total):
521
make / manufacturer:
snorkel 19' Electric Scissorlift
model name / number:
S3219E-04-002089
QR Code Link to This Post
Price 8,095.00 plus Tax With a 6 Month Parts Warranty
FOB Henderson, Nevada
General Specifications – S3219E
Aerial Platform
Working height 25′ (7.6 m)
Maximum platform height 19′ (5.8 m)
Turning radius
Inside 4″ (10.16 cm
Outside 64.25″ (1.63 m)
Wheelbase 52″ (1.32 m)
Ground clearance
Pothole protector raised 2.63″ (6.68 cm)
Pothole protector lowered 0.75″ (1.9 cm)
Maximum wheel load 1,450 lbs (659.1 kg)
Maximum ground bearing pressure
175 psi (12.3 kg/cm²)
Floor load pressure – ANSI 250 psf (1221 kg/m²)
Floor load pressure – CE/AS/NZS 300 psf (1465 kg/m²)
Tread contact patch 8.5 in² (55.1 cm²)
Floor area 14.2 ft² (1.32 m²)
Weight, EVW – ANSI
Approximate 3,126 lbs (1418 kg)
Weight, EVW – CE/AS/NZS
Approximate 3,170 lbs (1438 kg)
Maximum allowable manual force (side pull)
Indoors 90 lbs (400 N)
Outdoors 45 lbs (200 N)
Stowed width 32″ (81.3 cm)
Stowed length 70.4″ (1.79 m)
With step removed 68.25″ (1.73 m)
Stowed height – ANSI 79.25″ (2.01 m)
Stowed height – CE/AS/NZS 82.3″ (2.09 m)
With rails folded 65″ (1.65 m)
Platform
Dimensions
Main 28.25″ x 63.75″ (71.6 cm x 161.9 cm)
Extension 28.25″ x 36″ (71.6 cm x 91.4 cm)
Total length with extension 99.75″ (253.4 cm)
Guardrail height – ANSI 39″ (0.99 m)
Guardrail height – CE/AS/NZS 43.3″ (1.1 m)
Toeboard height 6″ (15.2 cm)
Rated work load
Total 550 lb (250 kg)
Extension 250 lb (113 kg)
Maximum number of occupants 1 outdoors
2 indoors
Function Speed
Platform raise 16 to 20 seconds
Platform lower 30 to 36 seconds
High Drive
Platform lower than 6′ (1.8 m)
0 to 2 mph (0 to 3.2 km/h)
Low Drive
Platform higher than 6′ (1.8 m)
0 to 0.4 mph (0 to 0.6 km/h)
* Refer to Chapter 4 – Safety Devices, Progressive Tilt
Drive System
Standard Two-wheel drive
Gradeability 25%
Maximum drive height 19′ (5.8 m)
Drive/Lift Level Sensor Interlock
Side-to-side – ANSI 2 degrees*
Side-to-side – CE/AS/NZS 1.5 degrees*
Front-to-rear 4 degrees
Tires
Nonmarking solid rubber 12″ x 4″ (30.5 cm x 10.2 cm)
Electrical System
Voltage 24 V DC
Source Four - 6 V 220 amp hour batteries
Fluid recommended distilled water
Charger 25 amp
Input 120/240 V
Hydraulic System
Maximum pressure 3,300 psi (22,750 kPa)
Reservoir capacity 3 US gal (11.35 l)
System capacity 3.5 US gal (13.2 l)
Maximum operating temperature 160°F (71°C)
Hydraulic fluid recommended
Above 10°F (-12°C) ISO VG32
Below 10°F (-12°C) ISO VG15
Ambient Air Temperature Operating Range
Fahrenheit 0°F to 110°F
Celsius -18°C to 43°C
Maximum Wind Speed
Gust or steady 28 mph (12.5 m/s)
Vibration
Hand/arm less than 2.5 m/sec²
Body less than 0.5 m/sec²
Sound Pressure Level
At work station 73 dB(A)
Group Classification
Heavy Duty – intended life 100,000 load cycles
