Small block chevy - $8,000 (Henderson)
QR Code Link to This Post
509 engine block- splayed billet milidon splayed main caps, arp studs. Bore of engine 4.150
All machine work done by HBR COMPETITION ENGINES IN VEGAS.

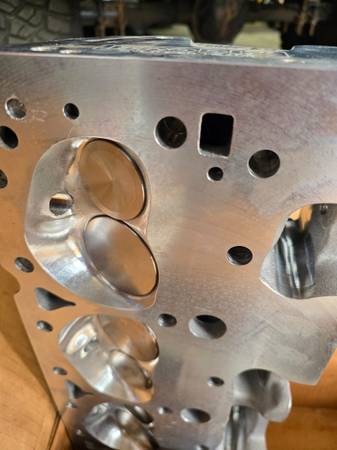

BRODIX DRAGON SLAYER 225 CC HEADS 68 CC CHAMBERS
SPRINGS ARE SET UP FOR SOLID ROLLER
SOLID ROLLER CAM 4-7 SWAP
LIFT .654 INTAKE .655 EXHAUST
DURATION 0.20 TAPPET LIFT 299 INTAKE 309 EXHAUST
MORE SPECS ON CAM IS IN THE PICS.
BRODIX BM 1000 INTAKE MANIFOLD single plane 4000-8000
COMPLETE 4340 377 STROKER FORGED STEAL CRANK BOUGHT FROM CNC MOTORSPORTS SCAT. 3.48
ALONG WITH 6IN CONNECTING RODS SCAT. WITH ARP 8000 ROD BOLTS. VERY STOUT FORGED BOTTOM END
JE 1086022 POP UP PISTONS FORGED FULL FLOATING RIST PINS
TOTAL SEAL HIGH PERFORMANCE PISTON RINGS THAT HAS HAVE BEEN FILE FITTED AND ASSIGHNED TO EACH BORE AND PISTON FROM HBR COMPETITION RACING ENGINES
MANLEY 7381 RACE ROLLER TIMING CHAIN WITH TORRINGTON BEARING
COMPLETE CLEVITE ENGINE BEARING KIT ALL ASSIGHNED TO EACH PART AS WELL WITH CAM BEARINGS . BY HBR COMPETITION RACING ENGINES.
Over 8K INVESTED
